Manual:

Intended Use

• TheBinaryClock is designed for the unique digital display of time using binary code and is intended for indoor use only.
• Power is supplied via the included power adapter with an input voltage of 100–240V / 50–60Hz.

Contents

• TheBinaryClock
• Power Adapter
• LED Remote Control (including battery)
• User Manual

Installation Instructions

• Ensure the device is disconnected from the power supply before installation.
• The clock should be placed or mounted indoors, away from heat sources or potential fire hazards.

Mounting

1. Remove TheBinaryClock from the packaging and check for any visible damage.
2. Place the device on a stable surface or mount it on a wall using the provided mounting brackets.
3. Use only the supplied power adapter for operation.
4. Ensure that no cables are under tension or pinched.

Operation

TheBinaryClock is operated using the included LED remote control.

• Use the remote to turn the display on or off, adjust colors, and change other settings.

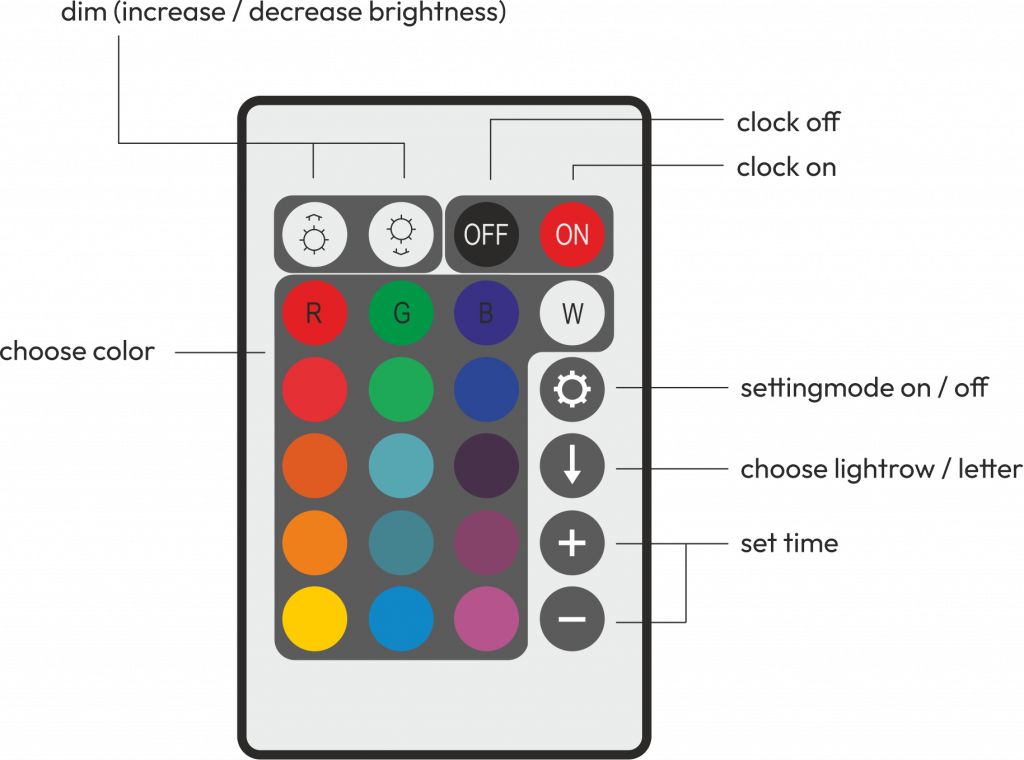

• The specific functions of each button are illustrated in the following diagram.

Care and Maintenance

• The clock requires no regular maintenance.
• To clean, use a dry or slightly damp cloth (always unplug the power cord first!).
• Do not use aggressive cleaning agents or abrasive materials.
• Never immerse the device in water.

Battery Replacement (for Timekeeping):
If the time display becomes inaccurate after disconnecting from power, the internal clock battery (type CR2032) must be replaced.

1. Unscrew the back cover of the housing.
2. Carefully remove the circuit board that holds the battery.
3. Insert a new CR2032 battery.
4. Reattach the back cover, ensuring no components are damaged.

Safety Precautions

• Keep all packaging materials out of reach of children (risk of suffocation!).
• Do not operate the device while it is still in its packaging.
• Check the product for damage before first use.
  If the power adapter or other components are defective, do not use the clock.
• Do not attach any objects to TheBinaryClock.
• This device is not a toy and is not suitable for children.
• Avoid contact with liquids.
• Always disconnect The Binary Clock from power before connecting a USB-C cable to the Arduino or performing any programming.
  Never have both the power adapter and a USB cable connected simultaneously.
• If an unsuitable power adapter (other than 5V DC 2A) is used, the internal fuse will activate, and the clock will not power on.
  In this case, disconnect the device immediately and contact us at fedanilabs@gmail.com.

Disposal Information

• This product must not be disposed of with household waste.
  For proper disposal and recycling information, please refer to the following link:
  https://fedanilabs.de/returnanddisposal

Technical Specifications

TheBinaryClock
Display: Binary Code LED
Operating Voltage: 100–240V 50–60Hz
Dimensions: 40cm × 25cm × 3.6cm

Power Adapter
Input Voltage: 100–240V 50–60Hz
Output Voltage: 5V DC 2A

Remote Control
Battery Type: Button Cell CR2025

Disclaimer of Liability

• Schöneberger, Britz & Löhlein GbR accepts no liability for damage caused by improper use, incorrect installation, or failure to follow these instructions.
• TheBinaryClock is also intended for users who wish to create their own programming or modifications.
  Please note that any hardware or software changes are made at your own risk.
  Schöneberger, Britz & Löhlein GbR assumes no responsibility for damages, malfunctions, or consequential losses resulting from modifications.
• This product uses an integrated real-time clock.
  Minor deviations in timekeeping may occur with frequent power interruptions.
  This device is not a precision timekeeping instrument.
